Trem-EZ Template - Vintage Strat to Floyd Rose Conversion - (Compatible w/ Gotoh, FU Tone, Guyker & More)

🎯 Remove the Guess-Work, Hit the Mark:

Trem-EZ™ by Pulse Pickups
Turn Your 6-Screw Strat into a Floyd Machine—Fast.
Compatible WITH FLOYD ROSE, GOTOH, FU TONE, GUYKER AND MANY MORE - ANY BRIDGE THAT USES 74MM STUD/POST SPACING

💥 Ready to Upgrade Your Trem?

Forget eyeballing and praying. The Trem-EZ™ Template is your all-in-one guide to converting your old-school 6-screw Strat trem into a slick, modern 2-post Floyd Rose–style trem—without wrecking your guitar.

No guesswork. No custom jigs. Just line it up, mark your holes, and get to drilling.

🔧 Why Trem-EZ Rocks:

• ⚡ Fits Right In – Lines up with your existing 52mm 6-screw trem to make positioning easy

• 🎯 Floyd Rose–Ready – Perfectly marks your new post holes—no math, no stress

• 🛠️ DIY-Friendly – Great for first-timers or seasoned modders

• 💪 Built Tough – Shop-quality template made to take a beating

• 🎸 Upgrade Like a Pro – No more shaky setups or off-center bridges

🧰 Who It's For:

• Tinkerers, modders, tone chasers

• Strat lovers who want that Floyd Rose action

• Anyone who wants to upgrade without sending their guitar to a tech

🚀 How It Works:

1. Loosen Guitar Strings

2. Remove Rear Tremolo Springs

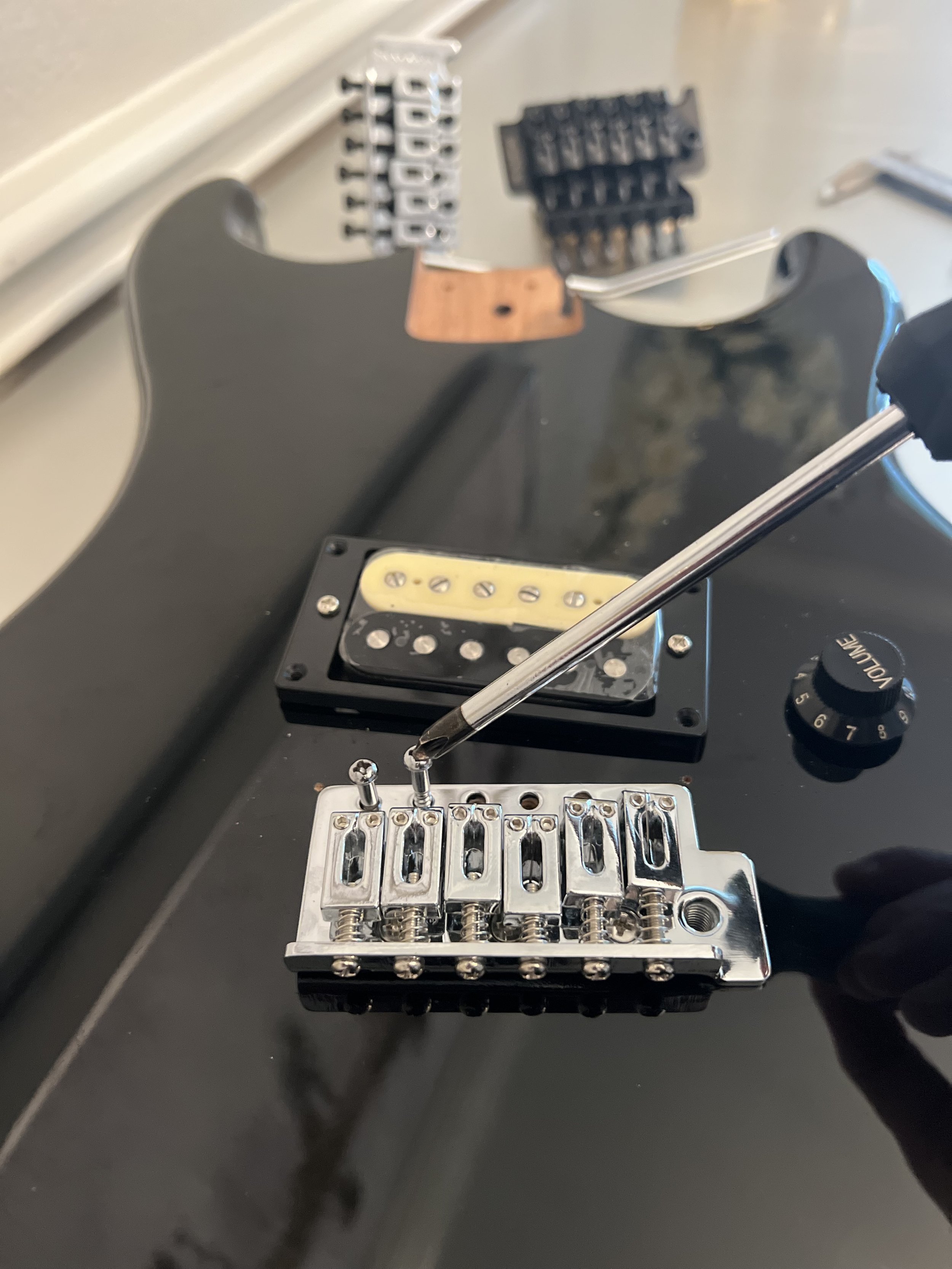

3. Remove 6 Screws Holding Stock Bridge

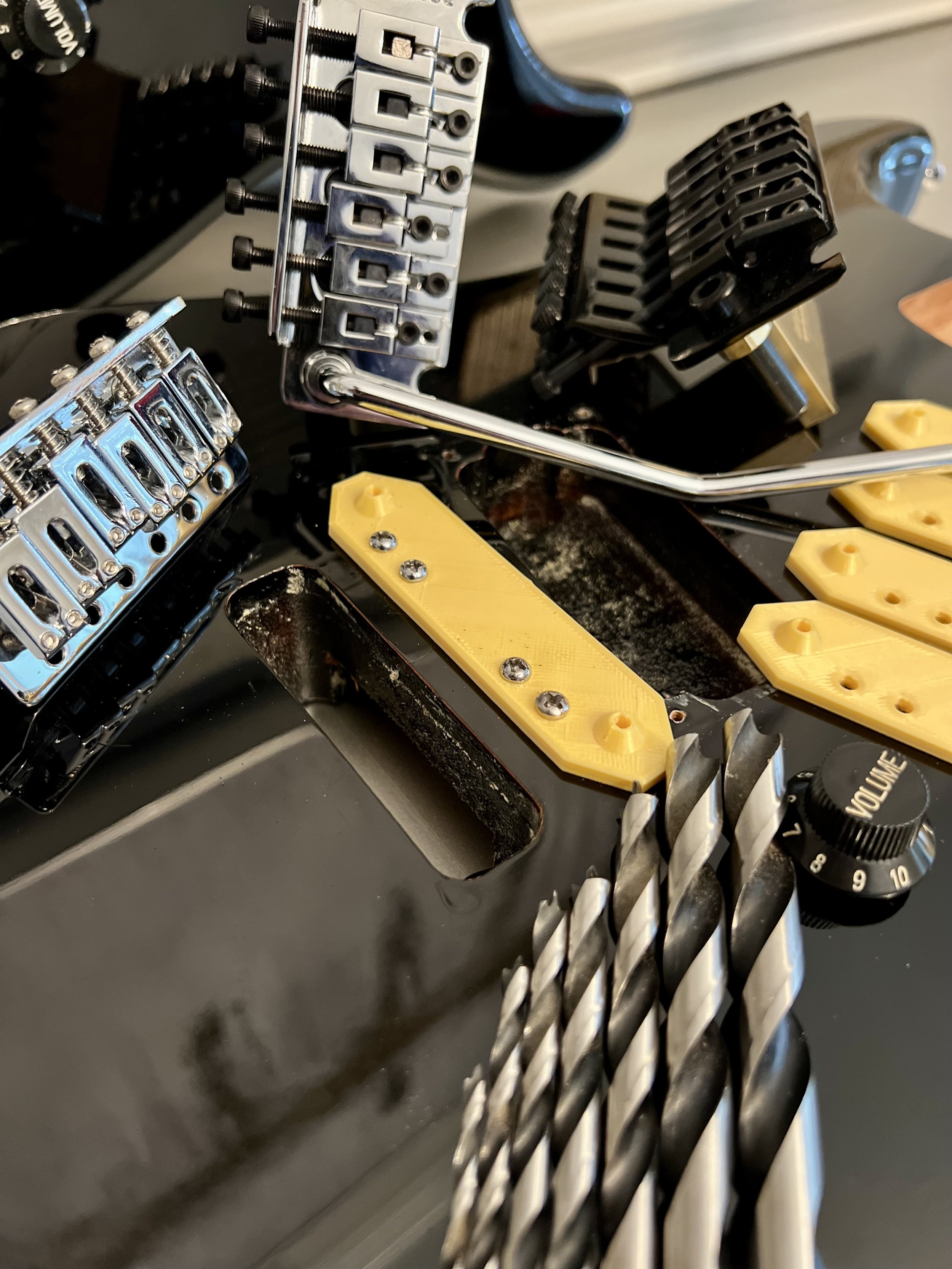

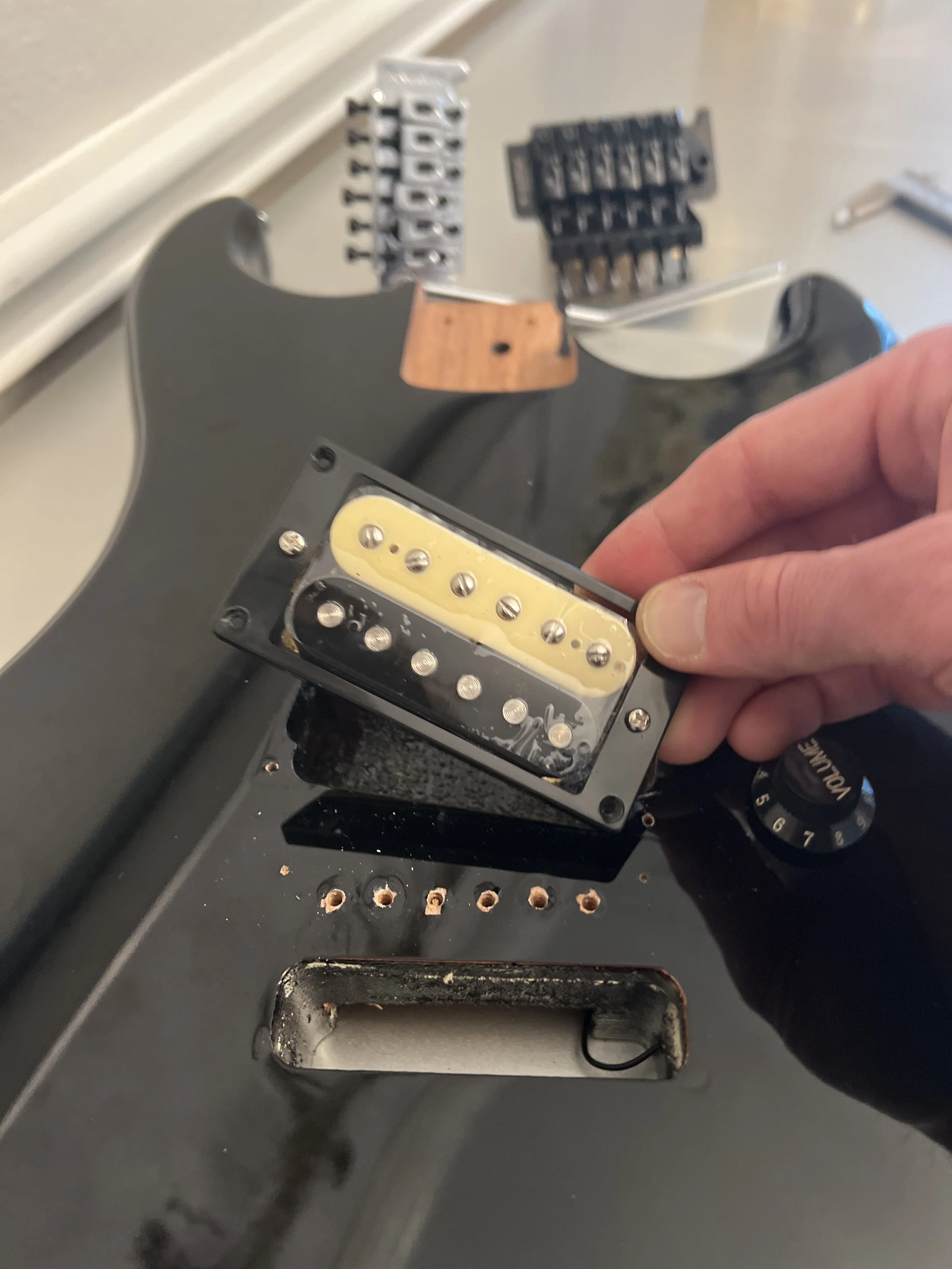

4. Position Trem-EZ Template (SEE PHOTOS FOR PROPER ORITENTATION!)(SLANTED BRIDGE PICKUPS MAY NEED TO BE REMOVED FOR CLEARANCE)

5. Use at least 2 and up to 4 Stock Bridge Screws to fasten Trem-EZ to body (DON’T OVERTIGHTEN)

6. Outer drill guides are measured to 74mm, which is compatible with all Floyd Rose, Gotoh1996, FU Tone, Guyker & many more 2 Point Mounting Systems. Use a 2mm drill bit to drill small pilot holes at correct depth compatible with your chosen mounting system (see details below)*

7. Remove Trem-EZ Template

8. Use a slightly larger 3mm drill bit, then increase gradually by 1mm until desired width & depth is reached*

   1. *Stepping up bit gradually instead of drilling a large hole all at once reduces the risk of the drill bit snagging and in many cases prevents paint from chipping (not guaranteed).

   2. *POST WIDTH - The final size of the post holes depends on the mounting system you are using - for example - Gotoh1996 Stud Inserts measure at 11.27mm Wide - so the final hole/drill bit should be 11mm - the slightly smaller hole will ensure the stud insert fits snugly without the need for wood glue. Floyd Rose Special Stud Inserts are smaller and measure at 10.2mm - so the final hole/drill bit would be slightly smaller at 10mm in this instance. Make sure to measure your studs with a ruler or caliper OR see if you can verify information on Google to ensure a proper fit.

   3. POST DEPTH - Also make sure to measure the depth/length of your stud inserts - overdrilling or underdrilling can result otherwise. Gotoh1996 Studs are 30mm deep, Floyd Rose Special Studs are 20mm deep - always make sure to measure. A simple method to prevent overdrilling is to put a piece of a tape on the drill bit at the desired stopping point.

🏁 Wrap It Up:

The Trem-EZ™ Template by Pulse Pickups makes trem upgrades simple, fast, and foolproof.
Stop guessing. Start modding.

🛒 Grab yours now and make your Strat scream.
